Description

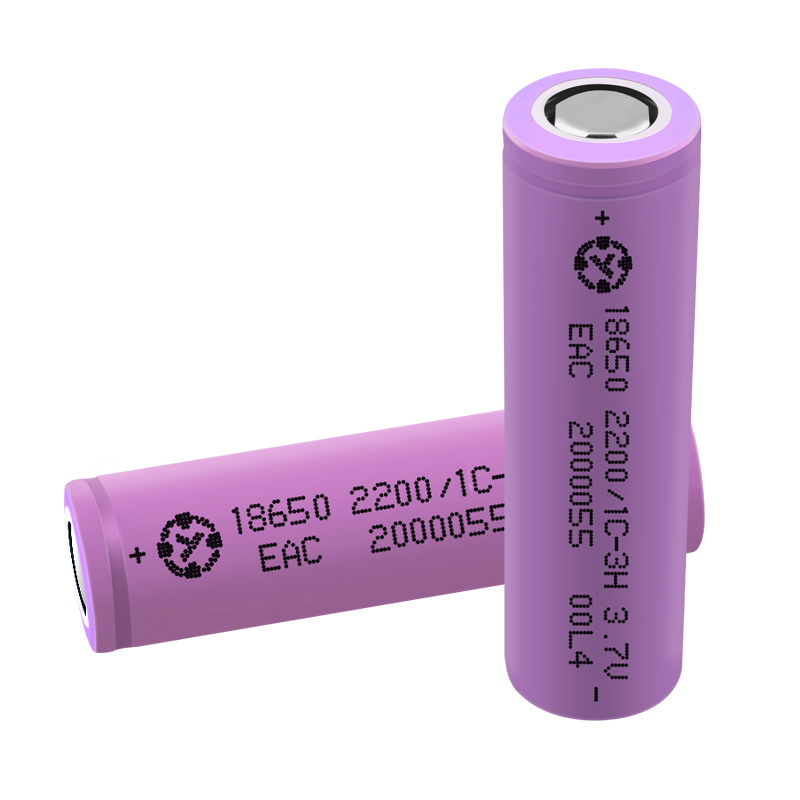

Battery Specification
2200mah battery 1c for power tools, full capacity, high cycling, low internal resistance and ultra-low
self-discharge to meet the requirements of your power products.
self-discharge to meet the requirements of your power products.
Capacity: 2200 mAh
Minimum Capacity: 2200 mAh
Discharge Rate: 1C
Nominal Voltage: 3.7V
Internal Resistance: ≤55mΩ
Cycle Life: 300
Charge Voltage: 4.2V士0.03V
Charge Current: 0.5C (About 3 hours) 1C (About 2 hours)
Standard Discharge Mode: 0.2C Constant current discharge to 2.75V
Max. Continuous Discharge Current: 2200mA
Operating Temperature Range: Recharge (0-45°C) Discharge (-20-60°)
Long time Storage Temperature: -20~25°C
Initial Size: Diameter:18.15+0.20mm Height:65.0士0.50mm
Product Features
Sufficient Capacity
Our INR18650 lithium batteries are manufactured with a design capacity that is typically greater than the nominal capacity to ensure thatevery cell delivered to our customers is greater than the nominal capacity.
High Cycle
All models are guaranteed to maintain more than 80% of their capacity when cycling cycles reach 300 weeks, and some models can achieve 500 weeks.
ps: The above data is actually derived from the testing data of actual batches.
Low Internal Resistance
Different models of batteries have slightly different internal resistance, we ship batteries with internal resistance between 13-18MΩ. If you have special requirements, we can customize the production according to customer needs.
Ultra-Low Self-Discharge
Adopting low self-discharge technology, strong power preservation, minimizing the natural loss of power. The battery can be used for a long time.

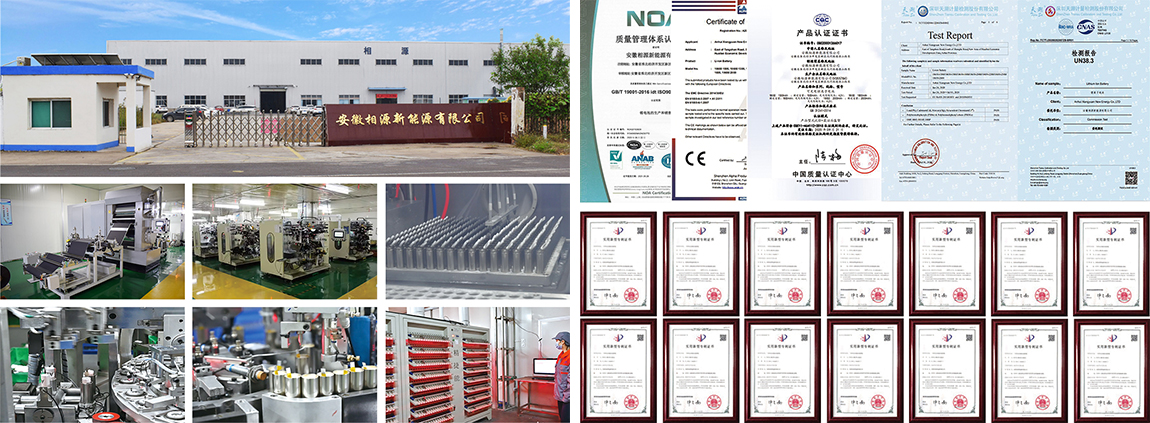

About Us
we’re a new energy high-tech enterprise integrating R&D, production and sales of 18650 power lithium batteries.All of our products are certificated by UN38.3, CE, CB, ROHS, CQC and other industry mainstream tests，with 100% full load aging test with short circuit protection, overload protection, overvoltage protection and over temperature protection.
About Logistics
Ready stock style orders will be shipped within 72 hours, customized styles, please contact us by email or phone, the factory will be based on your needs for your production, delivery time is generally 7-15 days!
FAQs
Q: Are you a trader or a manufacturer?
A: We are a manufacturer with 5 factories producing 18650 Li-ion batteries in China, sales office in Guangdong Province, accept custom.
A: We are a manufacturer with 5 factories producing 18650 Li-ion batteries in China, sales office in Guangdong Province, accept custom.
Q: Do your products meet the industry standard?
A: Of course, we produce grade A 18650 Li-ion batteries, our factory has been famous in certain industry, and the batteries we produce are certified to meet the industry
A: Of course, we produce grade A 18650 Li-ion batteries, our factory has been famous in certain industry, and the batteries we produce are certified to meet the industry
access standards.
Q: What is 1C discharge ratio?
A: 1C discharge ratio means that the battery can be discharged at a current that is one times its capacity. For a 2200mAh battery, 1C means that the battery supports a continuous discharge current of 2.2A, which is suitable for low power devices.
A: 1C discharge ratio means that the battery can be discharged at a current that is one times its capacity. For a 2200mAh battery, 1C means that the battery supports a continuous discharge current of 2.2A, which is suitable for low power devices.
Q: What is the recommended charging current for this battery?
A: A charging current of 0.5C to 1C is recommended, and 1A to 2A charging is recommended. Typical charging time is 2-3 hours, depending on the power of the charger.
A: A charging current of 0.5C to 1C is recommended, and 1A to 2A charging is recommended. Typical charging time is 2-3 hours, depending on the power of the charger.
Q: What are the advantages of this battery over other multiplier batteries?
A: 1C batteries are suitable for low power and long endurance application scenarios, where the focus is on stable energy output and longer usage time rather than high current instantaneous output.
A: 1C batteries are suitable for low power and long endurance application scenarios, where the focus is on stable energy output and longer usage time rather than high current instantaneous output.
