Description
Battery Specification
2200mah battery 5c for power tools, full capacity, high cycling, low internal resistance and ultra-low
self-discharge to meet the requirements of your power products.
self-discharge to meet the requirements of your power products.
Capacity: 2200 mAh
Minimum Capacity: 2180 mAh
Discharge Rate: 5C
Nominal Voltage: 3.7V
Internal Resistance: ≤18mΩ
Cycle Life: 500
Charge Voltage: 4.2V士0.03V
Charge Current: 0.5C (About 3 hours) 1C (About 2 hours)
Standard Discharge Mode: 0.2C Constant current discharge to 2.75V
Max. Continuous Discharge Current: 11000mA
Operating Temperature Range: Recharge (0-45°C) Discharge (-20-60°)
Long time Storage Temperature: -20~25°C
Initial Size: Diameter:18.15+0.20mm Height:65.0士0.50mm
Product Features
Sufficient Capacity

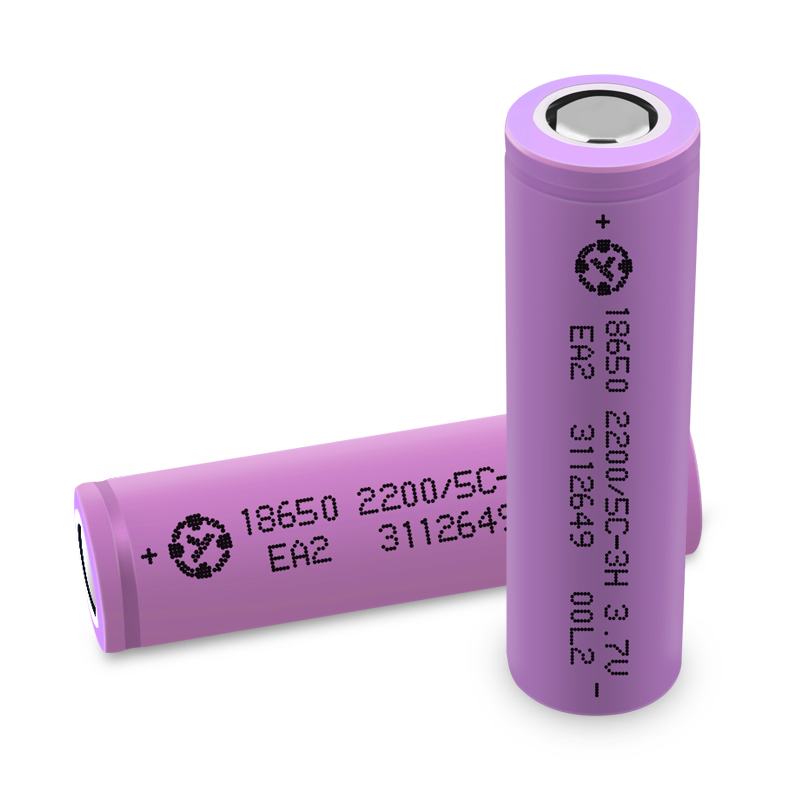

Our INR18650 lithium batteries are manufactured with a design capacity that is typically greater than the nominal capacity to ensure thatevery cell delivered to our customers is greater than the nominal capacity.
High Cycle
All models are guaranteed to maintain more than 80% of their capacity when cycling cycles reach 300 weeks, and some models can achieve 500 weeks.
ps: The above data is actually derived from the testing data of actual batches.
Low Internal Resistance
Different models of batteries have slightly different internal resistance, we ship batteries with internal resistance between 13-18MΩ. If you have special requirements, we can customize the production according to customer needs.
Ultra-Low Self-Discharge
Adopting low self-discharge technology, strong power preservation, minimizing the natural loss of power. The battery can be used for a long time.
About Us
we’re a new energy high-tech enterprise integrating R&D, production and sales of 18650 power lithium batteries.All of our products are certificated by UN38.3, CE, CB, ROHS, CQC and other industry mainstream tests，with 100% full load aging test with short circuit protection, overload protection, overvoltage protection and over temperature protection.
About Logistics
Ready stock style orders will be shipped within 72 hours, customized styles, please contact us by email or phone, the factory will be based on your needs for your production, delivery time is generally 7-15 days!
FAQs
Q: What is 5C discharge ratio?
A: 5C discharge rate means that the battery can be discharged at 5 times the current of its capacity. For a 2200mAh battery, 5C means that the battery supports a continuous discharge current of up to 11A.
A: 5C discharge rate means that the battery can be discharged at 5 times the current of its capacity. For a 2200mAh battery, 5C means that the battery supports a continuous discharge current of up to 11A.
Q: Is this battery suitable for high or low temperature environment?
A: It is recommended that the battery be charged at temperatures ranging from 0°C to 45°C and discharged at temperatures ranging from -20°C to 60°C. The battery can be charged at temperatures ranging from -20°C to 60°C. Extreme temperatures may affect the performance or shorten the life of the battery. For use in extreme weather, it is recommended to choose a low temperature battery.
A: It is recommended that the battery be charged at temperatures ranging from 0°C to 45°C and discharged at temperatures ranging from -20°C to 60°C. The battery can be charged at temperatures ranging from -20°C to 60°C. Extreme temperatures may affect the performance or shorten the life of the battery. For use in extreme weather, it is recommended to choose a low temperature battery.
Q: How long does it take for the battery to be fully charged?
A: Using a charging current of 1A to 2A, the battery takes about 2.5 to 3.5 hours to fully charge. The actual charging time depends on the power of the charger and the condition of the battery.
A: Using a charging current of 1A to 2A, the battery takes about 2.5 to 3.5 hours to fully charge. The actual charging time depends on the power of the charger and the condition of the battery.
Q: What kind of certification do you have?
A: The company has passed ISO certification and its products have passed UN38.3, CE, CB, ROHS, SGS and other mainstream industry tests, and is fully insured with product liability insurance. insured with product liability insurance.
A: The company has passed ISO certification and its products have passed UN38.3, CE, CB, ROHS, SGS and other mainstream industry tests, and is fully insured with product liability insurance. insured with product liability insurance.
Q: Is this battery suitable for fast charging?
A: Yes, this battery can support fast charging, but it needs to be combined with a special Li-ion battery fast charger, and the recommended charging current is no more than 2.2A.
A: Yes, this battery can support fast charging, but it needs to be combined with a special Li-ion battery fast charger, and the recommended charging current is no more than 2.2A.
